This post is a branch from the earlier ESP32 based heads up display. Instead of using the frame buffer as a canvas to write text and variables or draw graphics, this post will use NTSC encoding.

See this Wikipedia link for more details about NTSC, https://en.wikipedia.org/wiki/NTSC. The code used in this post is a deviation from Matthias Goebl’s Github repo, https://github.com/matgoebl/esp8266-ntsc-c64-emulator with credit given to Jan Ostman, https://www.hackster.io/janost. I’m grateful to both of them for providing the foundation for what is presented here.

Most all other examples of NTSC or PAL use the Arduino Uno or ESP32. The Uno required 2 pins whereas the ESP32 used a pin not available on the ESP8266. Yes, ChatGPT was used in the effort because most every other human has abandoned developing on the ESP8266. I have a few hundred of these devices, so it’s a viable effort for me at least.  This video will provide some background for anyone curious about the topic of NTSC, the basis of Analog FPV.

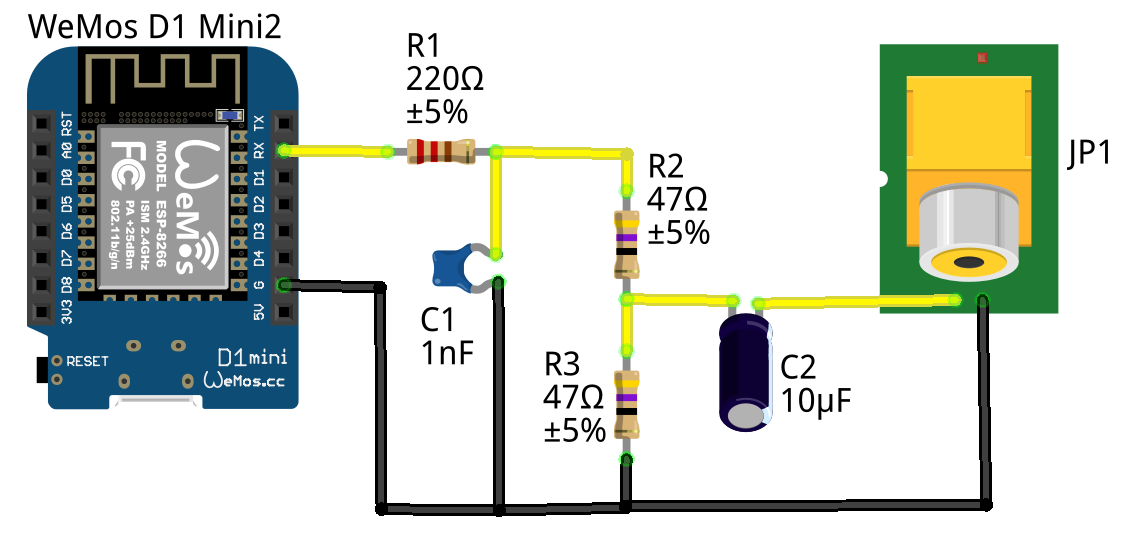

The specific hardware behind this project is the ESP8266 Wemos D1 mini clone. The module uses only one pin for the video out feed using the UART RX GPIO3 Pin. It is fed through a series of resisters with a tap that feeds a filtering capacitor out to the video input of the NTSC compatible device. There is an additional capacitor to filter high frequency noise to ground.

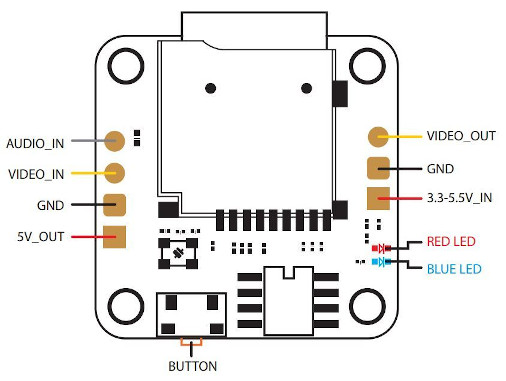

I also used the RunCam Mini FPV DVR to record the NTSC feed from the ESP8266, https://shop.runcam.com/runcam-mini-fpv-dvr/.  I used another RunCam for the background video.



The code was compiled using the Arduino IDE with these board settings, LOLIN(WEMOS) D1 mini (clone), 4MB (FS:none OTA:~1019KB). The bulk of the code uses native libraries from Jan’s code, which was available here https://hacksterio.s3.amazonaws.com/uploads/attachments/650768/ESP8266-NTSC-C64.zip. This list indicates the code changes made.

file – cpu.c

I had to add change this line, prog_uchar BIOS[16384] PROGMEM = {
to this, const unsigned char BIOS[16384] PROGMEM = {

These files remained unchanged.

dmsstuff.h
generate_video.c
pin_mux_register.h
slc_register.h

Finding the character ROM was a real joy, not really.

There was a lot of trial and error only to find that it was staring me in the face. All I had to do was count from the upper left corner to the right and down.

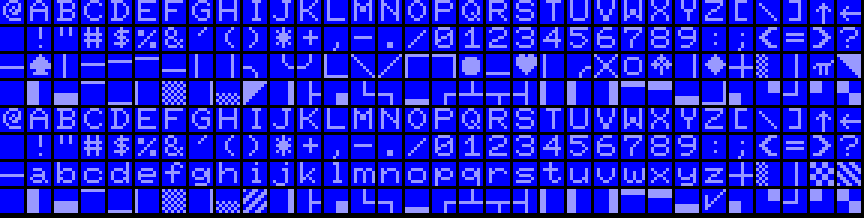

See this site https://cbmsteve.ca/cbmchr/index.html, much thanks to Steve J. Gray for bringing back memories of simpler times. Once I had the binary ROM file, I used this bash and python script to extract the array.

Bash

#!/bin/sh
python 2-generate_petscii.py 901439-08.bin > 901439-08_petscii_font.h
exit

Python

#!/usr/bin/env python3
import sys

def main(rom_file):
data = open(rom_file, "rb").read(2048)
print("// Generated PETSCII font bitmap (256 chars × 8 bytes each)")
print("static const uint8_t petscii_font[256][8] = {")
for i in range(256):
chunk = data[i*8:(i+1)*8]
hexes = ",".join(f"0x{b:02X}" for b in chunk)
print(f" /* 0x{i:02X} */ {{{hexes}}},")
print("};")

if __name__ == "__main__":
if len(sys.argv) != 2:
print("Usage: generate_petscii.py <chargen.bin>")
sys.exit(1)
main(sys.argv[1])

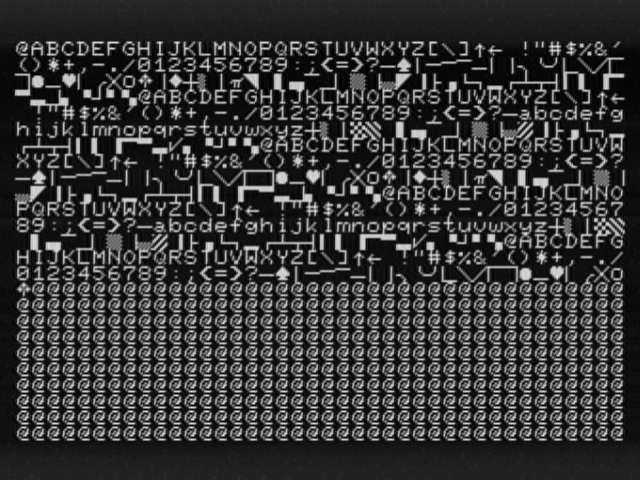

Creating the example video above was from some FFMpeg commands to take video from an action camera, crop it, and layer the NTSC video on top.

Bash

#!/bin/sh

# Crop the Runcam 1080p video to 480p
ffmpeg -i 20230205_133707_01.MP4 -filter:v "crop=640:480" 20230205_133707_01_cropped.MP4
# Alpha channel the Runcam 480p video and layer both
ffmpeg -i 20230205_133707_01_cropped.MP4 -i HUD-Demo.AVI -filter_complex \
"[1:v]colorkey=0x000000:0.3:0.1[ckout]; \
[0:v][ckout]overlay=(main_w-overlay_w)/2:(main_h-overlay_h)/2" \
-t 60 ESP8266 Wemos NTSC HUD-Demo Overlay.mp4

exit

Here is the Arduino code used in the H.U.D. example video above.  It uses counters for the changing values.  This is a demo of the NTSC feed, not interfacing sensors with the microcontroller and displaying those values.  I’ll defer to the audience to move forward in that regard.
